Description
LATEST TECHNOLOGY

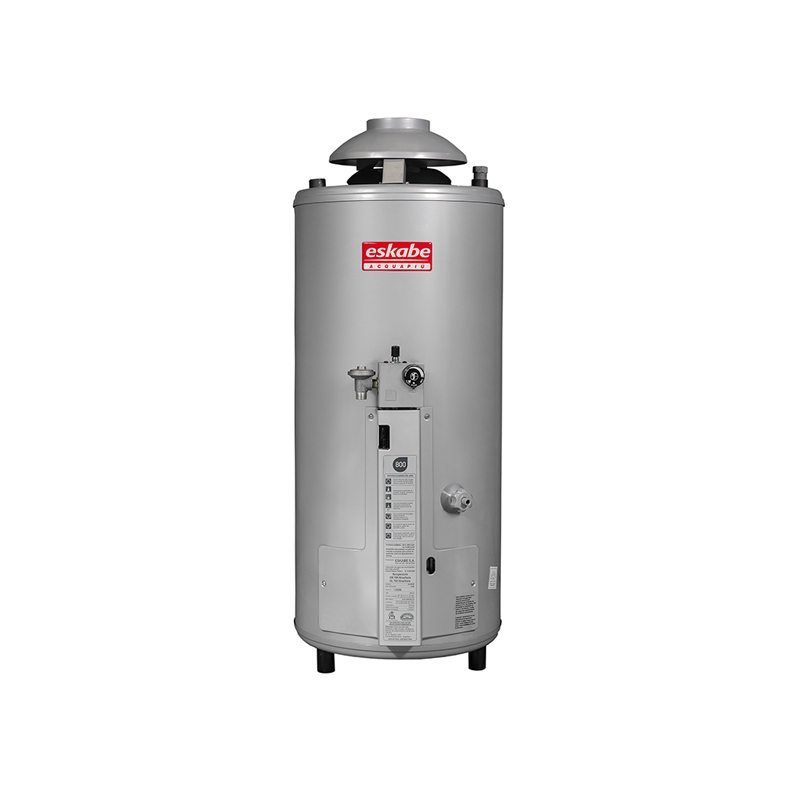

A5 – HIGH RECOVERY
GAS STORAGE WATER HEATER
HIGH RECOVERY
HIGH RECOVERY: 800 liters
WITH 4 TUBES HEAT EXCHANCER
HOT WATER, ALWAYS!
5″ Venting (Vertical)
- 2 showers at the same time
- Unlimited consecutive showers
- Suitable for supplying water for hot tubs with a capacity up to 150 liters
- Monoxiprotector
- Water Overheat Safety Device
- Double thickness Poliurethane Insulation
- Piezoelectric igniter
- Pressure regulator (only for NG)
- Multigas
| Model | A5 |
|---|---|
| Line | Eskabe Acquapiú |
| Type | Alta recuperación |
| Recovery [liters/h with Δt=20ºC] Natural Gas | 760 |
| Recovery [liters/h with Δt=20ºC] LPG | 750 |
| Power [kcal/h] Natural Gas | 21000 |
| Power [kcal/h] LPG | 19000 |
| Tank capacity [liters] | 52 |
| Multitubular system (4 tubes) | Si |
| Quantity of consecutive 10´-showers per hour | 6 |
| Necessary equivalent quantity of 120-liter water heaters in 1 hour | 3 |
| Capable to supply hot tubs with capacities up to [liters] | 150 |
| Piezoelectric igniter | Si |
| Temperature control thermostat | Si |
| MonoxiProtector gas outlet control | Si |
| Safety valve | Si |
| Relief valve | Si |
| Pressure Regulator (Only GN) | Si |
| Multigas | Si |
| Water inlet and outlet location | Superior |
| Vertical flue outlet | Si |
| Cabinet diameter [cm] | 45 |
| Chimney duct diameter [inches] | 5 |
| Cabinet height including interceptor [cm] | 109 |
| Color | Gris plata |
| Warranty | 3 años |
| Energy Efficiency | B |
| GN certification license | M 01-0406-05-014 |
| GL certification license | M 01-0406-05-014 |
