LATEST TECHNOLOGY

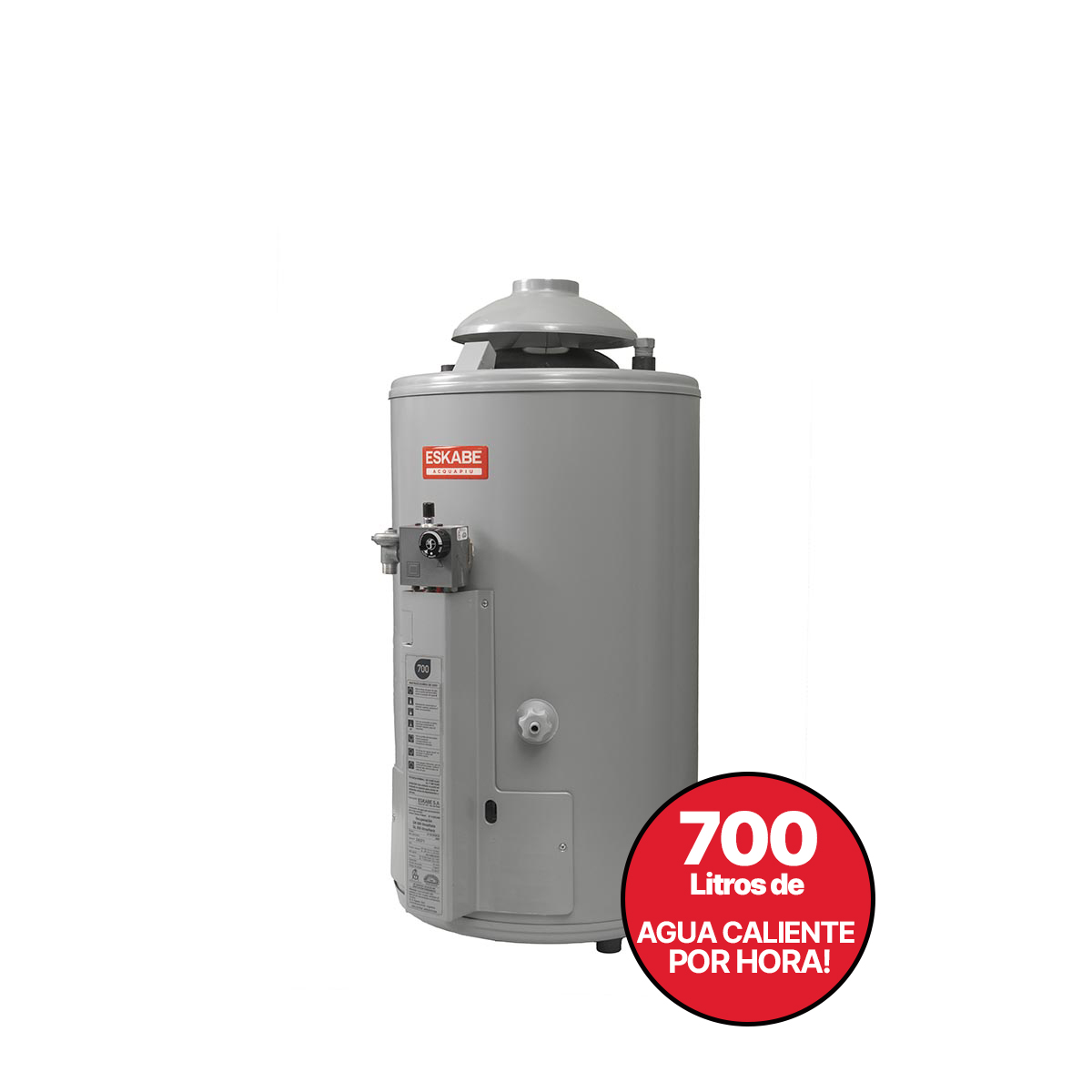

A4 SV J
GAS STORAGE WATER HEATER
HIGH RECOVERY
HIGH RECOVERY: 700 liters
WITH 4 TUBES HEAT EXCHANCER
HOT WATER, ALWAYS!
4″ Venting (Horizontal)
Horizontal
Venting
- Unlimited consecutive showers
- Monoxiprotector
- Water Overheat Safety Device
- Double thickness Poliurethane Insulation
- Piezoelectric igniter
- Pressure regulator (only for NG)
- 3 years warranty
- Multigas
| Model | A4 SV |
|---|---|
| Line | Eskabe Acquapiú |
| Type | Alta recuperación |
| Recovery [liters/h with Δt=20ºC] Natural Gas | 680 |
| Recovery [liters/h with Δt=20ºC] LPG | 656 |
| Power [kcal/h] Natural Gas | 19000 |
| Power [kcal/h] LPG | 17500 |
| Tank capacity [liters] | 40 |
| Multitubular system (4 tubes) | Si |
| Quantity of consecutive 10´-showers per hour | 4 |
| Necessary equivalent quantity of 120-liter water heaters in 1 hour | 2 |
| Capable to supply hot tubs with capacities up to [liters] | 132 |
| Piezoelectric igniter | Si |
| Temperature control thermostat | Si |
| MonoxiProtector gas outlet control | Si |
| Safety valve | Si |
| Relief valve | Si |
| Pressure Regulator (Only GN) | Si |
| Multigas | Si |
| Water inlet and outlet location | Superior |
| Vertical flue outlet | Si |
| Cabinet diameter [cm] | 45 |
| Chimney duct diameter [inches] | 4 |
| Cabinet height including interceptor [cm] | 93 |
| Color | Gris plata |
| Warranty | 5 años |
| Energy Efficiency | B |
| GN certification license | M 01-0406-05-015 |
| GL certification license | M 01-0406-05-015 |
| Note | (*) Para mantener la validez de la Garantía, deberá realizar el Mantenimiento Anual Obligatorio con el SERVICIO TÉCNICO AUTORIZADO ESKABE, durante todo el período de la misma. |
